How We Build Your Dock
The same commercial-grade aluminum truss system used in full-scale marinas — modularized, palletized, and engineered to ship to your driveway.
6061-T6 Marine Aluminum
The same alloy used in yacht hulls. Corrosion-resistant, incredibly strong, and never needs painting or staining.
Modular Design
Standard 8′×6′ sections connect with beam joiners. Add, remove, or reconfigure your dock layout as your needs change.
HDPE Floats
High-density polyethylene floats provide stable buoyancy. UV-resistant, impact-proof, and rated for 25+ years of service.
The Engineering Behind the 50-Year Warranty
Every component is commercial marina-grade. The same construction used in public waterfront facilities—built to last generations.
Modular Assembly System
Tongue-and-groove connections. No welding on site. No special tools. Two people can assemble a 200 sq ft dock in under four hours.

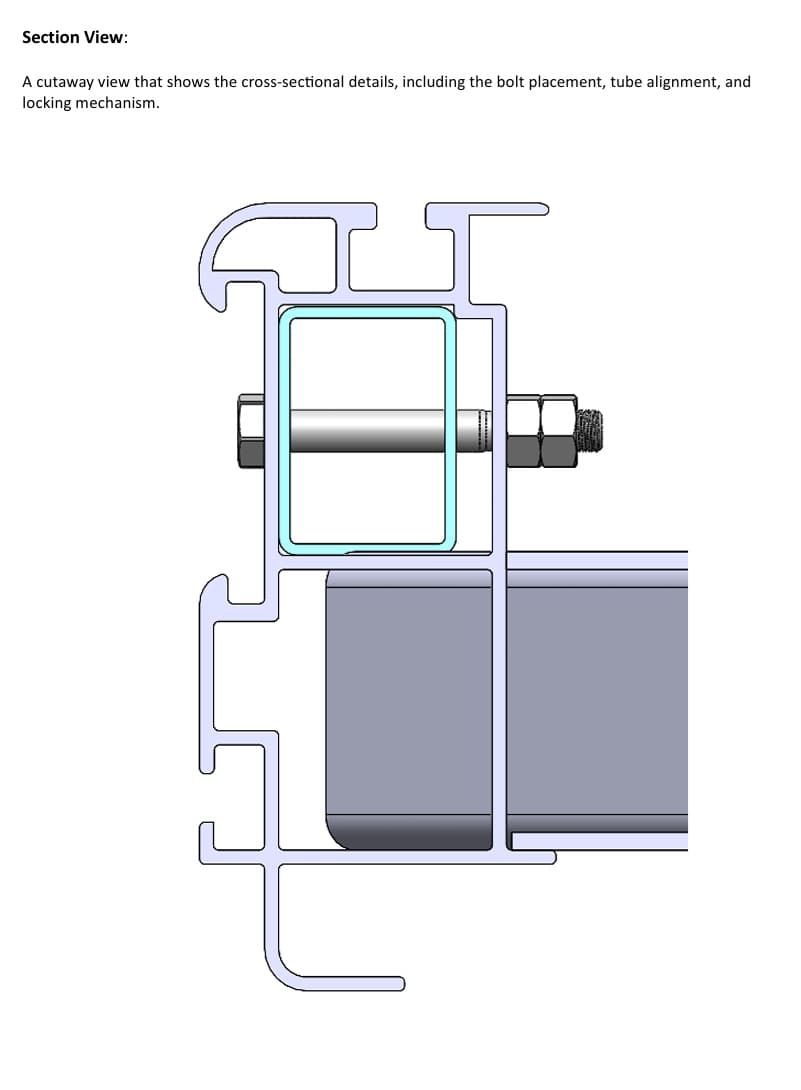

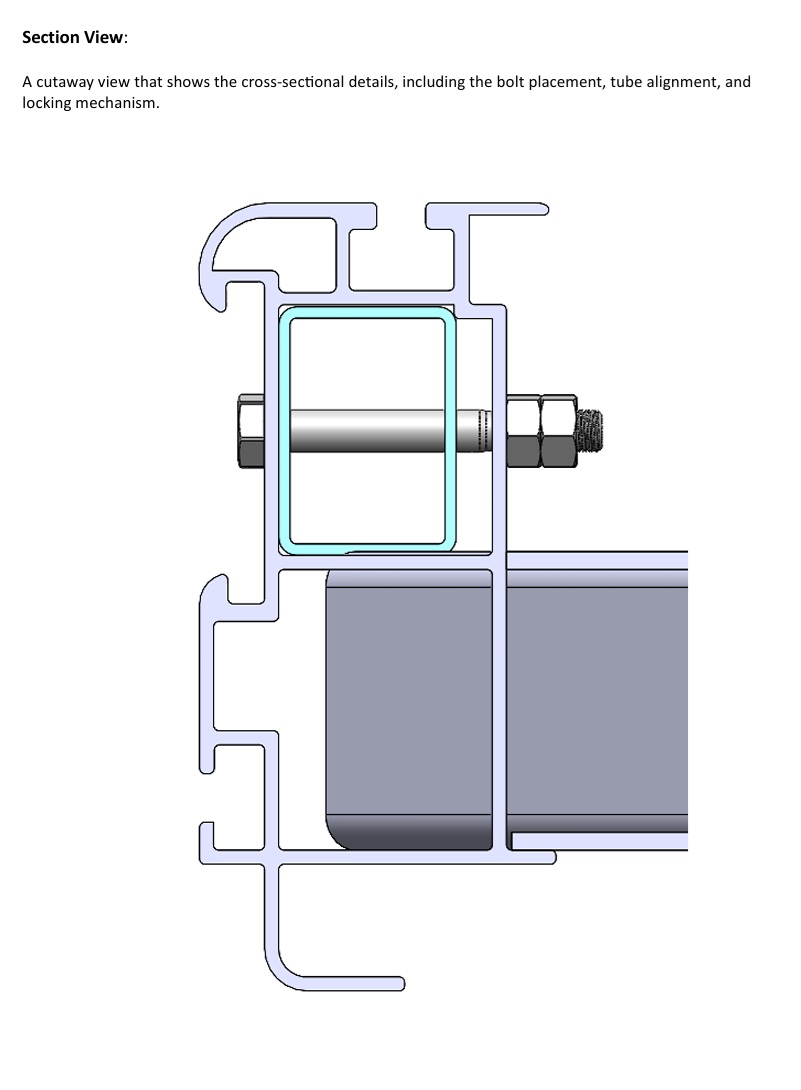

Double Truss Connection — Section View
This is the cross-section of our double truss rail system — the heart of how every dock section locks together. The joining bar slides into the channel formed by both rail extrusions simultaneously. One bolt passes through both rails and the bar in a single pass.
The extruded aluminum rail profile is engineered with precision-machined inner channels — the joining bar seats flush, with zero lateral play. It doesn't just connect the sections; it becomes a structural member spanning the joint.
A stainless steel bolt with double-nut locking passes through and torques down. Even under continuous wave action or load cycling, that joint doesn't move.
- Double truss rail — precision extruded 6061-T6
- Joining bar seated flush in machined channel
- Single bolt pass through both rails and bar
- Double-nut stainless locking — zero vibration loosening
Inside the Frame

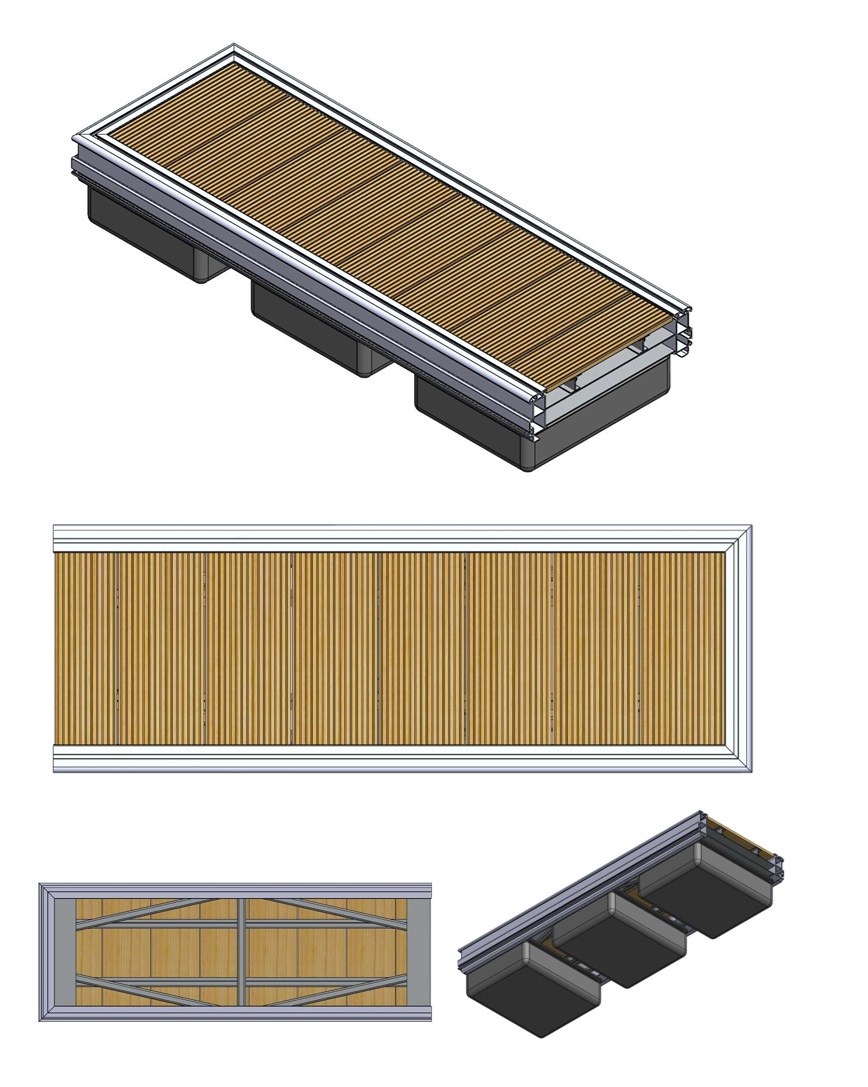

Assembly sequence showing frame, floats, and decking installation

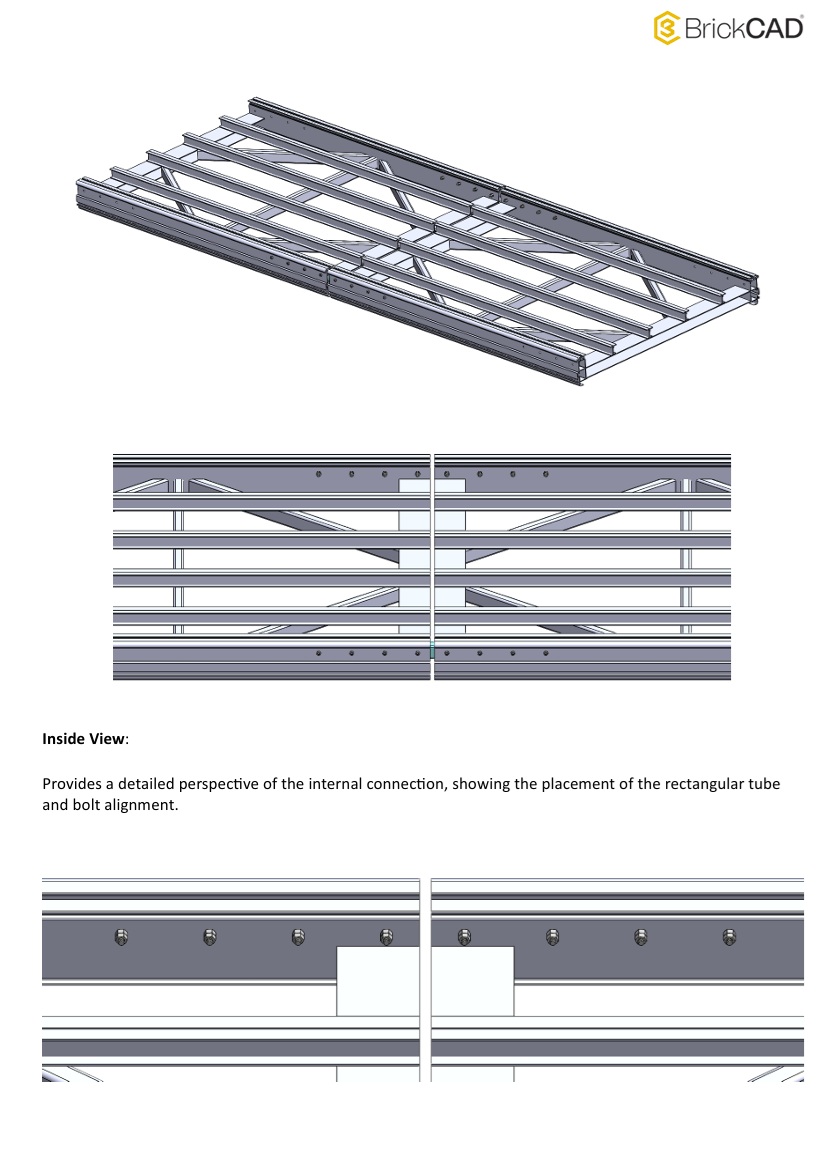

Bare aluminum skeleton—6061-T6 extrusions before decking
Engineering Drawings

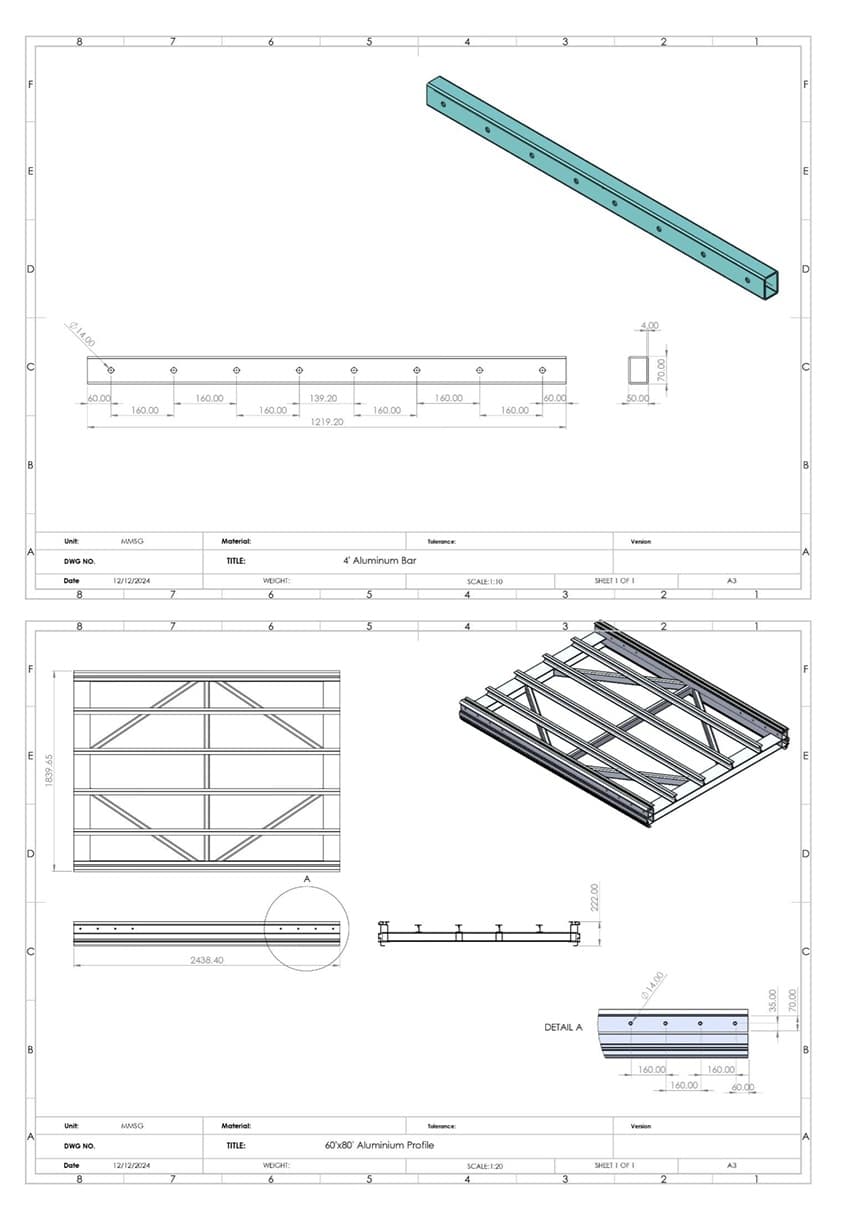

Dimensioned engineering drawings: 8ft × 6ft sections, 50×70mm joining bars, 4mm wall thickness
